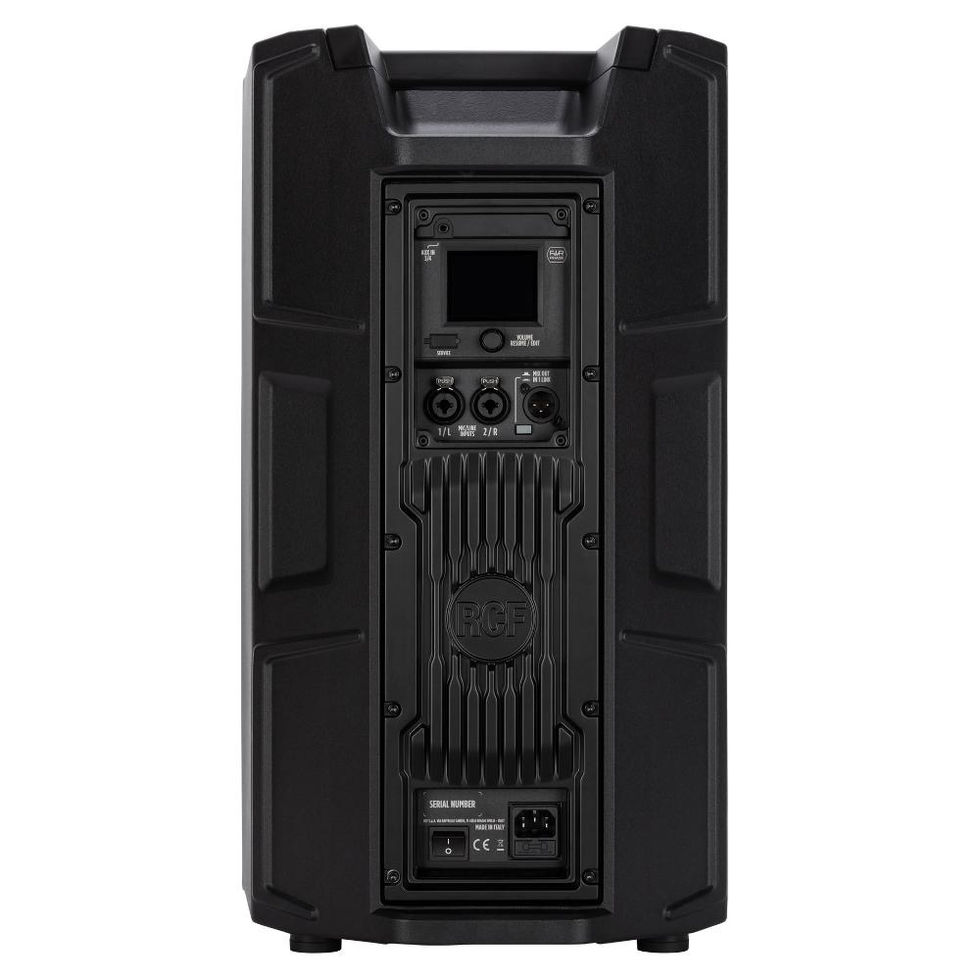

RCF ART 910-AX PROFESSIONAL ACTIVE BLUETOOTH® SPEAKER
£685.00
ART 910-AX is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Merging RCF proprietary FiRPHASE and Bass Motion Control (BMC) DSP processing, perfectly tuned for each model, audiences will experience absolute clarity and deep, powerful bass response. The ART 910-AX combines a powerful and high-performance amplified speaker, with a digital audio processor for maximum flexibility. Several operating modes are possible, with the speaker alone or in combination with other speakers. Audio can be streamed to the speaker, along with remote control, via Bluetooth®. All the available functions and parameters are accessible from the onboard color display via a capacitive touch screen and an encoder, as well as from a dedicated app for iOS and Android smartphones.
Tech Spec
ACOUSTICAL SPECIFICATIONS
Frequency Response 50 Hz - 20000 Hz
Max SPL @ 1m 130 dB
Horizontal coverage angle 100°
Vertical coverage angle 60°
TRANSDUCERS
Compression Driver 1 x 1.0'', 1.75'' v.c
Woofer 1 x 10'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal bal/unbal
Input connectors Combo XLR/Jack
Output connectors XLR
PROCESSOR SECTION
Crossover Frequencies 1600Hz
Protections Thermal, RMS
Soft Limiter
Controls Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.
POWER SECTION
Total Power 2100 W Peak
High frequencies 700 W Peak
Low frequencies 1400 W Peak
Cooling Convection
Connections VDE
ELECTRONIC SPECIFICATIONS
Frequency Response 20 Hz - 20 Hz
THD+N, 20dB gain, 0dBu out 0.005% A-Weighted
PROCESSING
Processing Channels 6
Signal Processing 24 Bit
A/D-D/A conversion 32 Bit @ 48.0 kHz
Dynamic range 110
INPUTS Mic 2
Remote Controlled Storable Gain Yes
Gain Range 0 dB - 42 dB
Input Noise Level -114 dBu A-Weighted
Mic Inputs Impedance 6 kohm
Low Cut 20 Hz - 400 Hz
Phantom Power +48V Yes
Mono Line 2
Gain Selection 0 dB - 22 dB
Line Input Impedance 21 kohm
A/D Dynamic range 114 dB
Stereo Line 1
Gain Selection 0 dB - 10 dB
Stereo Line Input Impedance (kOhm) 13 kohm
OUTPUTS
Main MIX 1
OUTPUTS SPECIFICATIONS
Main Out Impedance 150 ohm
Main Out Level 22 dBu
D/A Dynamic Range 114 dB
COMPRESSORS
RCF Compressors
Compressors on MIC/LINE CH1 & CH2 Inputs
EQ
Input Channels EQ 2 Shelving 1
3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output.
INTERNAL EFFECTS
Send Effects 1
MASTERING PROCESSORS
Main OUT type
MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
STANDARD COMPLIANCE
Safety agency CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material PP Composite
Hardware 1 x M10 Top and Bottom
Handles 1 Top
Pole mount/Cap 35 mm insert
Grille Steel
Color Black
SIZE / WEIGHT
Height 572 mm / 22.52 inches
Width 330 mm / 12.99 inches
Depth 310 mm / 12.2 inches
Weight 16.2 kg / 35.71 lbs
SHIPPING INFORMATION
Package Height 615 mm / 24.21 inches
Package Width 370 mm / 14.57 inches
Package Depth 390 mm / 15.35 inches
Package Weight 19.2 kg / 42.33 lbs
Features
- Built-in 6-channel Digital Mixer
- Advanced User Interface w/ touch panel and remote control
- 1.75" Compression Driver and 10" Woofer
- Up to 130 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- Dual combo preamp with 48V Power and Mini-jack stereo line input
- Bluetooth® stereo audio input, with dual speaker pairing option
- True Resistive Waveguide, FiRPHASE, and Bass Motion Control
